MCG18P06YHE3-TP
POWER MOSFETManufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More

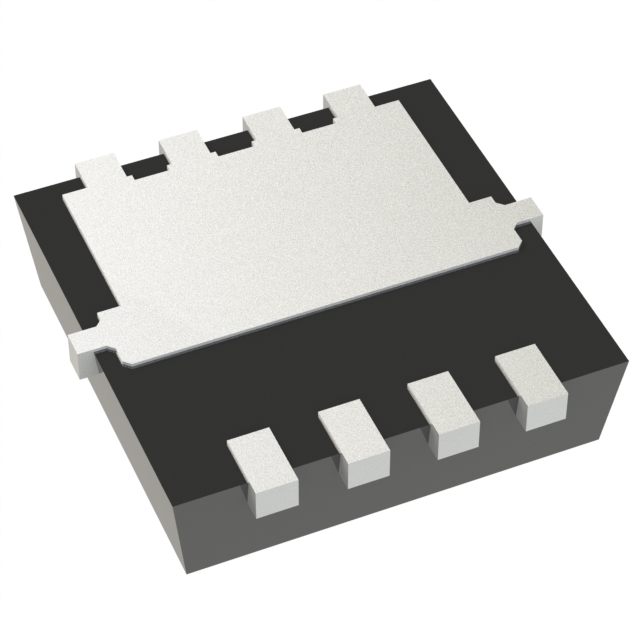

Micro Commercial Co MCG18P06YHE3-TP is a P-Channel Power MOSFET designed for demanding applications. This surface mount component offers a Drain to Source Voltage (Vdss) of 60 V and a continuous Drain Current (Id) of 18A at 25°C (Tc). The device features a low on-resistance (Rds On) of 45mOhm maximum at 15A and 10V Vgs, and a maximum power dissipation of 42W (Tj). It is qualified to AEC-Q101 standards, making it suitable for automotive and industrial applications. The MCG18P06YHE3-TP utilizes MOSFET technology and is supplied in a PDFN3333 package on tape and reel. Key electrical parameters include a gate charge (Qg) of 14.1 nC maximum at 10V Vgs and input capacitance (Ciss) of 830 pF maximum at 25V Vds. The operating temperature range is -55°C to 150°C (TJ) with a maximum gate-source voltage (Vgs) of ±20V and a threshold voltage (Vgs(th)) of 2.5V maximum at 250µA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 15A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 42W (Tj) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PDFN3333 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 14.1 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 830 pF @ 25 V |
| Qualification | AEC-Q101 |
