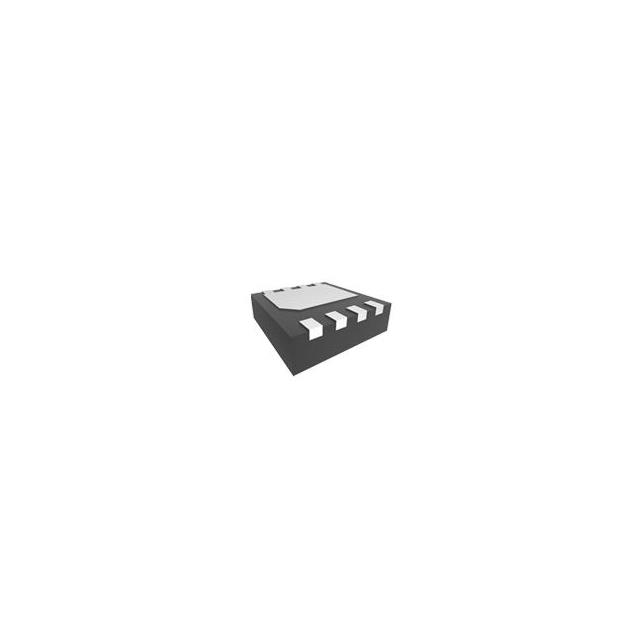

MCG04N10A-TP
MOSFET N-CH 100V 4A DFN3030-8Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Micro Commercial Co MCG04N10A-TP is an N-Channel Power MOSFET designed for efficient power switching applications. This component features a Drain-Source Voltage (Vdss) of 100V and a continuous Drain Current (Id) of 4A at 25°C, with a maximum power dissipation of 25W. The Rds(On) is specified at 105mOhm maximum at 4.5A and 10V gate drive. The device utilizes a DFN3030-8 package for surface mounting, offering excellent thermal performance. Key electrical parameters include a gate charge (Qg) of 11 nC at 10V and input capacitance (Ciss) of 612 pF at 50V. The operating temperature range is -55°C to 150°C (TJ). This MOSFET is suitable for use in industrial power supplies, automotive electronics, and general-purpose switching circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tj) |
| Rds On (Max) @ Id, Vgs | 105mOhm @ 4.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 25W |
| Vgs(th) (Max) @ Id | 2.6V @ 250µA |
| Supplier Device Package | DFN3030-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 612 pF @ 50 V |
