MCG012N10YL-TP
POWER MOSFETManufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More

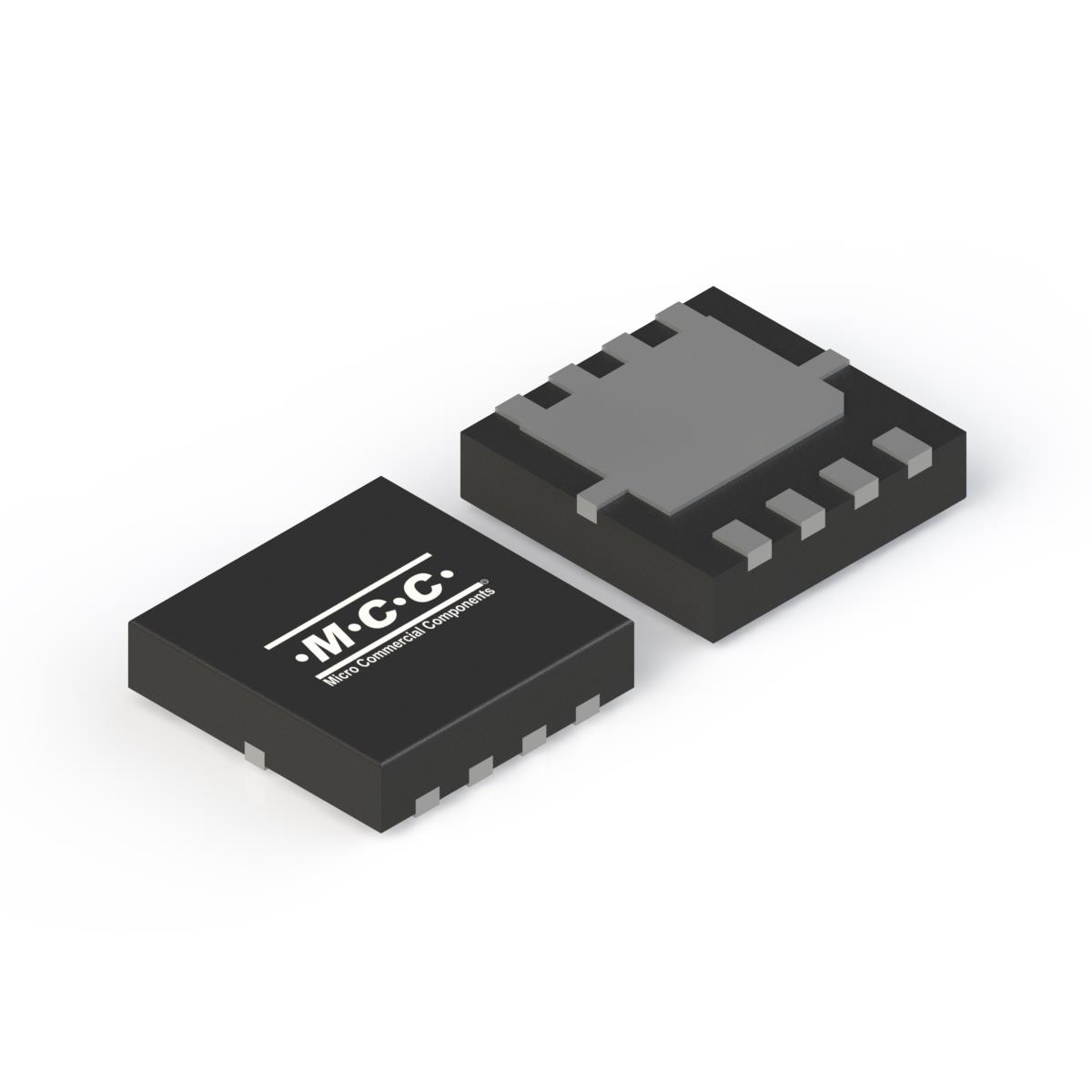

N-Channel 100 V 50A (Tc) 78W (Tj) Surface Mount DFN3333
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 78W (Tj) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | DFN3333 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1370 pF @ 50 V |
| Qualification | - |
