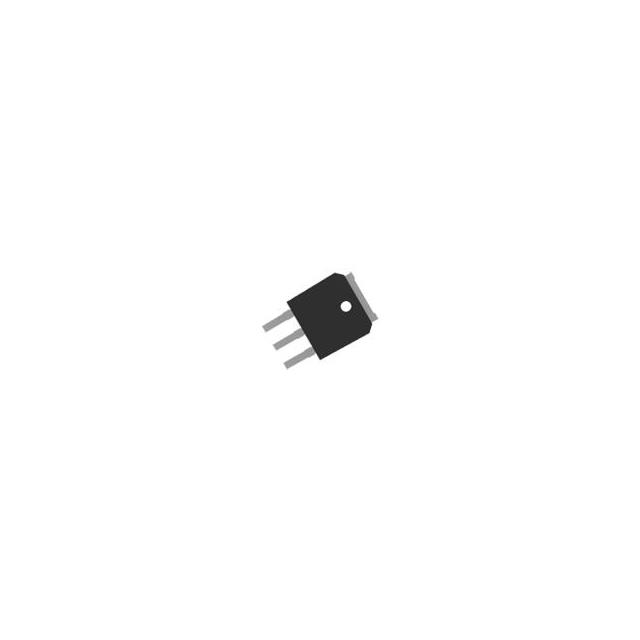

MCDS04N60-TP
MOSFET N-CHManufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Micro Commercial Co MCDS04N60-TP is an N-Channel Power MOSFET designed for high-voltage applications. This component features a Drain-to-Source Voltage (Vdss) of 600V and a continuous drain current (Id) of 4A at 25°C. The Rds On is specified at a maximum of 3 Ohms at 2A, 10V, with a gate drive voltage of 10V. Key parameters include a gate charge (Qg) of 10 nC at 10V and input capacitance (Ciss) of 760 pF at 25V. The device utilizes Metal Oxide technology and operates within a temperature range of -55°C to 150°C (TJ). The MCDS04N60-TP is housed in a TO-251S (IPAK) package with through-hole mounting and is supplied on tape and reel. This MOSFET is suitable for use in power supply circuits, lighting, and motor control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-251-3 Stub Leads, IPAK |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-251S |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 25 V |
