MCBS260N10YHE3-TP

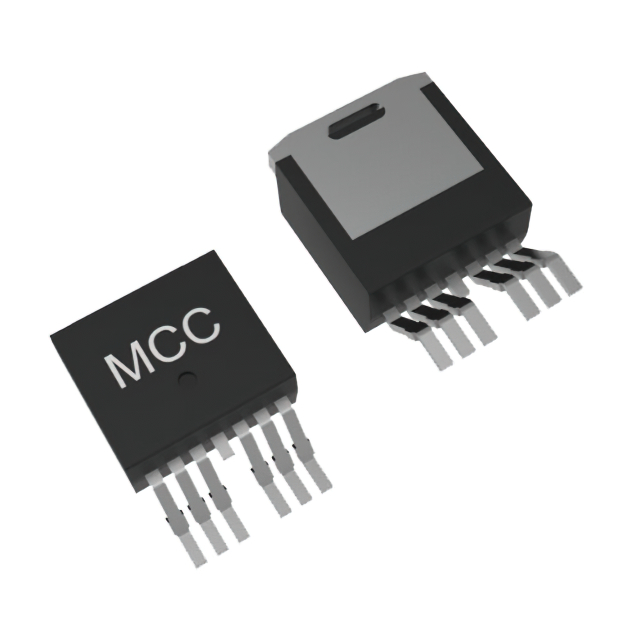

N-CHANNEL MOSFET,TO-263-7Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Micro Commercial Co MCBS260N10YHE3-TP is an N-Channel Power MOSFET designed for demanding applications. This component features a Drain-to-Source Voltage (Vdss) of 100V and a continuous Drain Current (Id) of 260A at 25°C (Tc). With a low on-resistance (Rds On) of 1.8mOhm at 30A and 10V, it offers efficient power handling. The maximum power dissipation (Pd) is 375W at 175°C (Tj). Key parameters include a gate charge (Qg) of 161 nC at 10V and input capacitance (Ciss) of 10589 pF at 30V. This MOSFET is supplied in a TO-263-7 (D2PAK) surface mount package, suitable for high-power density designs. The MCBS260N10YHE3-TP meets AEC-Q101 qualification standards, indicating its suitability for automotive applications. It operates across a temperature range of -55°C to 175°C (Tj).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 260A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 30A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 375W (Tj) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-263-7 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 161 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10589 pF @ 30 V |
| Qualification | AEC-Q101 |
