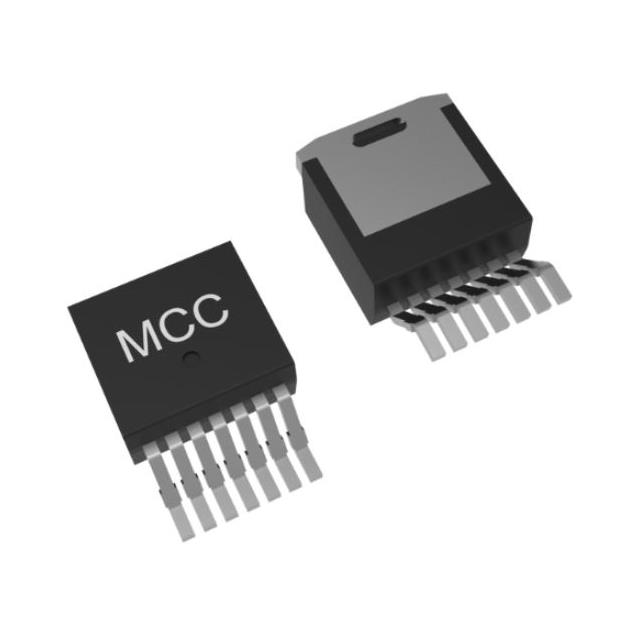

MCBS260N10Y-TP
N-CHANNEL MOSFET,TO-263-7Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Micro Commercial Co MCBS260N10Y-TP is an N-Channel Power MOSFET designed for high-power switching applications. It features a drain-to-source voltage (Vdss) of 100 V and a continuous drain current (Id) capability of 260 A at 25°C (Tc). The device offers a low on-resistance (Rds On) of 1.8 mOhm maximum at 30 A and 10 V gate drive. With a maximum power dissipation of 375 W (Tj), this MOSFET is suitable for demanding power management tasks. Key parameters include a gate charge (Qg) of 161 nC at 10 V and an input capacitance (Ciss) of 10589 pF at 25 V. The MCBS260N10Y-TP is housed in a TO-263-7 (D2PAK) surface-mount package, facilitating efficient thermal management. Typical operating temperature range is -55°C to 175°C (Tj). This component is widely utilized in power supplies, motor control, and automotive electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 260A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 30A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 375W (Tj) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-263-7 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 161 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10589 pF @ 25 V |
