MCBS220N04YHE3-TP

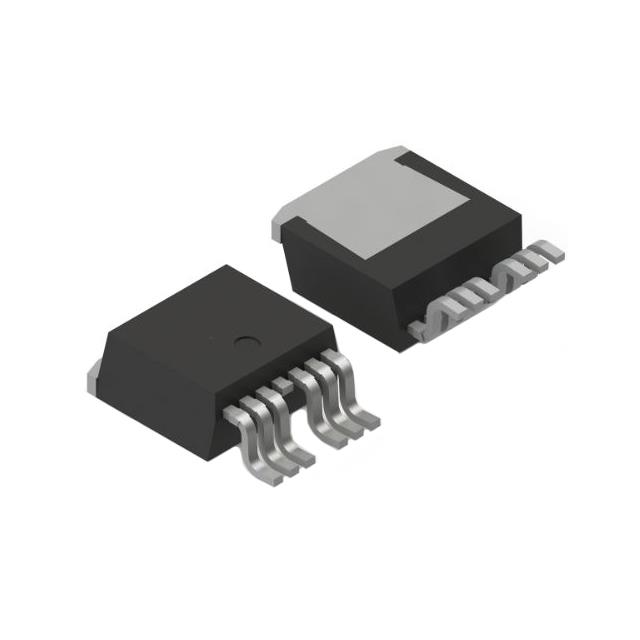

N-CHANNEL MOSFET,TO-263-7Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Micro Commercial Co MCBS220N04YHE3-TP is a 40V N-Channel Power MOSFET in a TO-263-7 surface mount package. This AEC-Q101 qualified component offers a continuous drain current of 220A at 25°C (Tc) and a maximum power dissipation of 188W (Ta). Featuring a low on-resistance of 1.1mOhm at 20A and 10V, it is suitable for demanding applications. The device operates across a wide temperature range of -55°C to 175°C (TJ). Its specifications make it a strong candidate for automotive power management and high-current switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 220A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.1mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 188W (Ta) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-263-7 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 132 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7967 pF @ 25 V |
| Qualification | AEC-Q101 |
