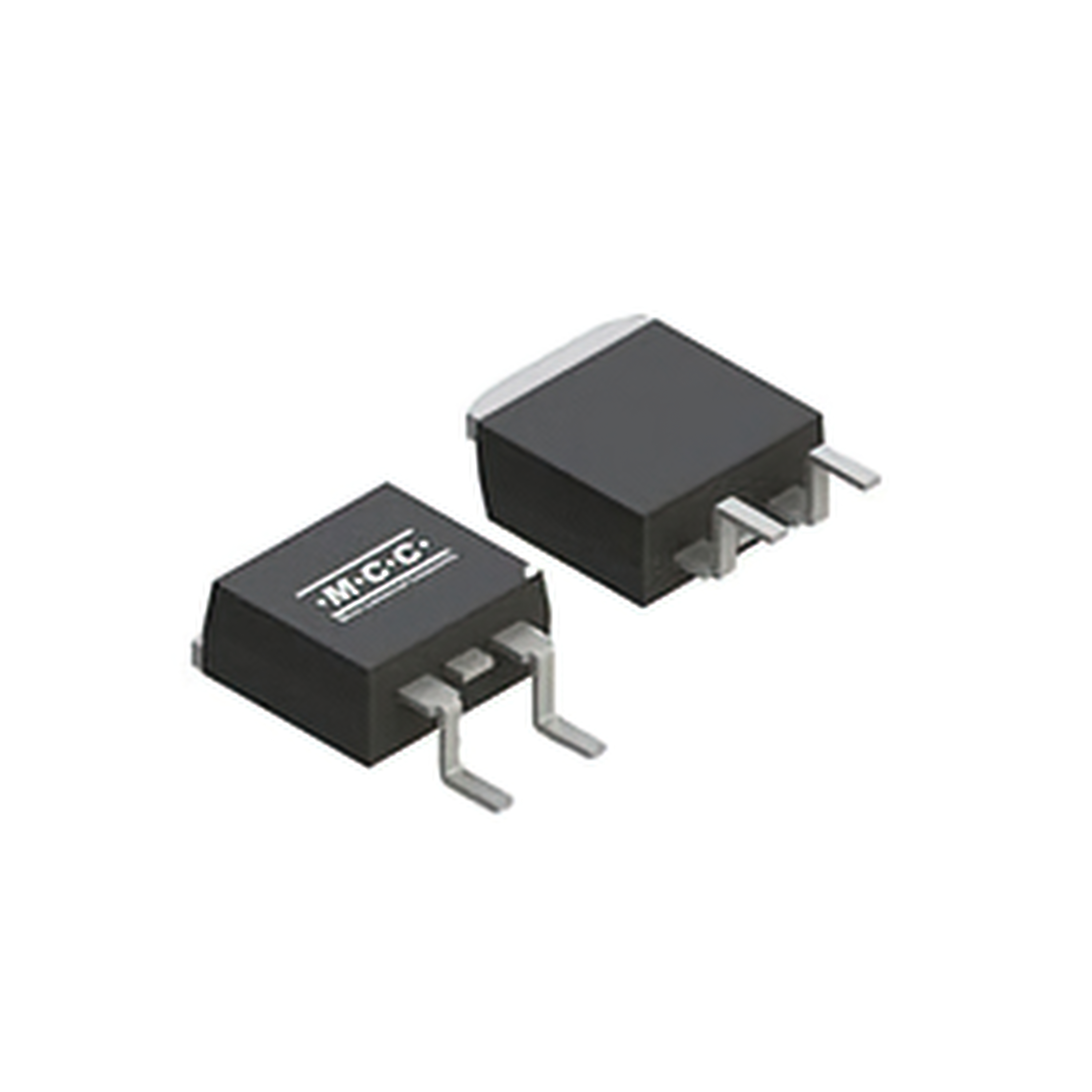

MCB70N15YHE3-TP
POWER MOSFETManufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 150 V 70A (Tc) 180W (Tj) Surface Mount D2PAK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 70A (Tc) |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 180W (Tj) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | D2PAK |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2517 pF @ 75 V |
| Qualification | AEC-Q101 |
