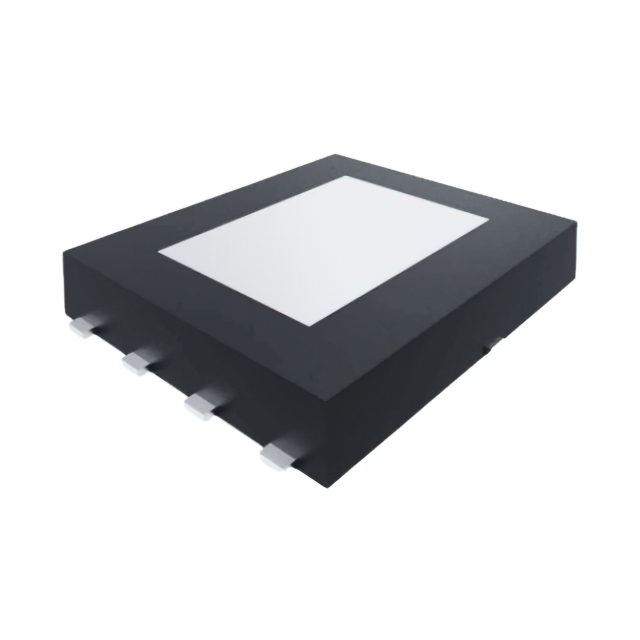

MCACLS290N04YHE3-TP
POWER MOSFETManufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Micro Commercial Co N-Channel Power MOSFET, MCACLS290N04YHE3-TP, offers a 40V drain-to-source voltage and continuous drain current of 290A at 25°C (Tc). This surface mount device features a low on-resistance of 1.1mOhm at 60A and 10V gate drive. With a maximum power dissipation of 195W (Tj) and a gate charge of 79nC at 10V, it is designed for demanding applications. The 8-PowerWDFN package, specifically DFN5060-DSC, is suitable for automotive applications, meeting AEC-Q101 qualification. Operating temperature ranges from -55°C to 175°C (TJ). This component is commonly utilized in automotive power management systems and high-current switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 290A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.1mOhm @ 60A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 195W (Tj) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | DFN5060-DSC |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 79 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5413 pF @ 20 V |
| Qualification | AEC-Q101 |
