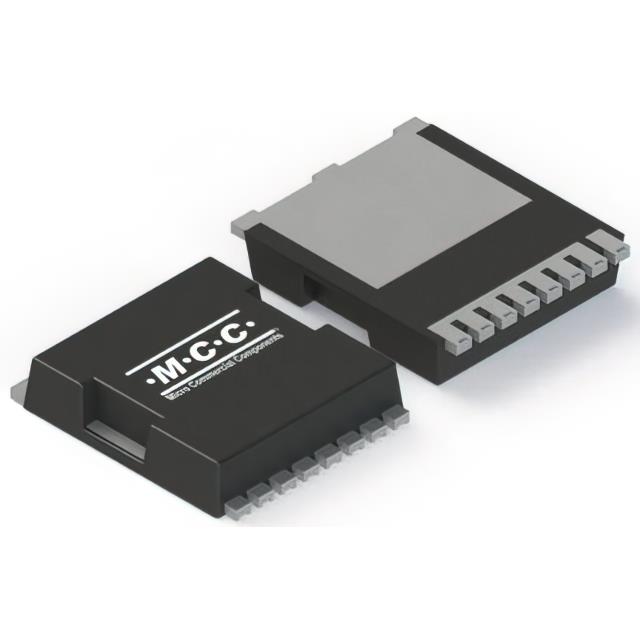

MCACL110N08Y-TP
N-CHANNEL MOSFET,DFN5060Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 80 V 110A (Tc) 125W Surface Mount DFN5060
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 55A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 125W |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | DFN5060 |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 68 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5290 pF @ 40 V |
Request a Quote
