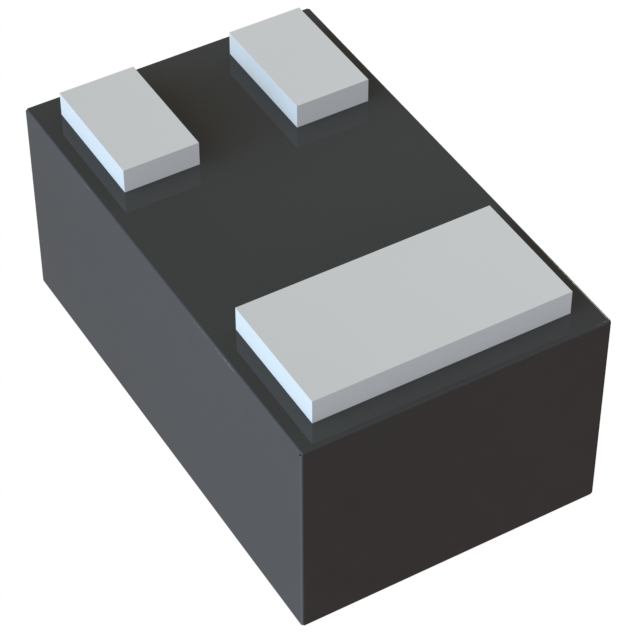

BSS84KL3A-TP
P-CHANNEL MOSFET,DFN1006-3Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 60 V 220mA (Tc) 470mW (Tj) Surface Mount DFN1006-3
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 220mA (Tc) |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 100mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 470mW (Tj) |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Supplier Device Package | DFN1006-3 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 2.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 22.9 pF @ 30 V |
| Qualification | - |
