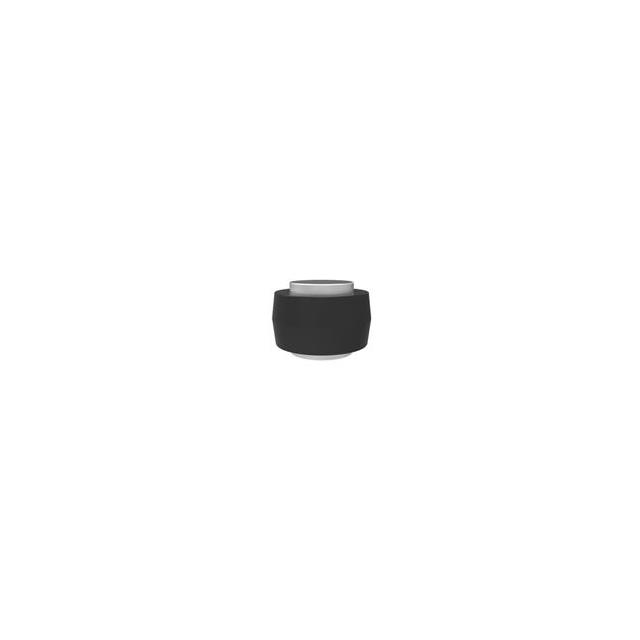

SRA501GP-TP
DIODE GEN PURP 50V 50A SRAManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
The Micro Commercial Co SRA501GP-TP is a standard recovery diode designed for general-purpose rectification applications. This surface mount component, packaged in SRA, offers a maximum DC reverse voltage of 50V and a substantial average rectified forward current of 50A. Its forward voltage drop is rated at 1V maximum at 25A, with a reverse leakage current of only 10 µA at 50V. The diode exhibits a capacitance of 100pF at 4V and 1MHz. Operating across a temperature range of -55°C to 150°C, its speed is characterized as standard recovery, exceeding 500ns for currents greater than 200mA. This component is commonly found in power supply rectification, industrial motor control, and automotive electronics. The SRA501GP-TP is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SRA |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 100pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 50A |
| Supplier Device Package | SRA |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 25 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
