SMPA845L-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More

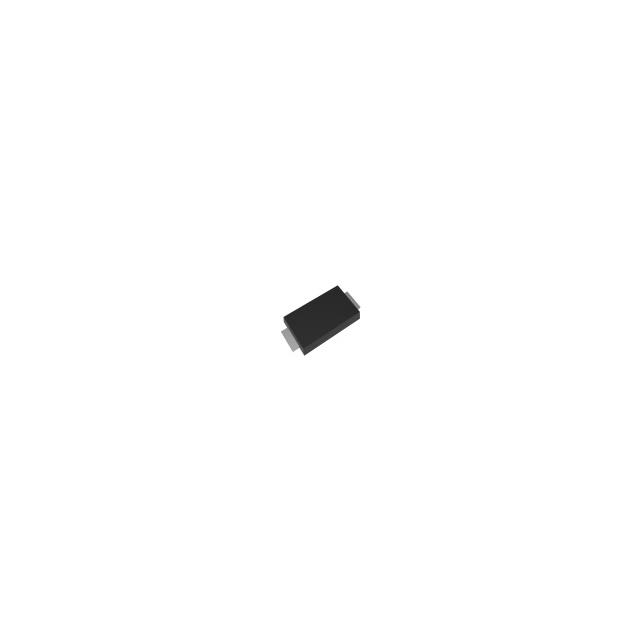

Micro Commercial Co's SMPA845L-TP is a Schottky diode designed for demanding applications. This component offers a maximum DC reverse voltage of 45V and a forward voltage drop of only 550mV at 8A, ensuring high efficiency. With an average rectified current capability of 8A and a reverse leakage of 100 µA at 45V, it provides robust performance. The device features a low capacitance of 320pF at 4V and 1MHz. Packaged in a DO-221BC, SMA Flat Leads (SMPA) for surface mounting, it operates across a wide temperature range of -55°C to 150°C. This diode is suitable for use in power supply rectification, automotive electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-221BC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 320pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | SMPA |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 8 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 45 V |
