SMD320HE1-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More

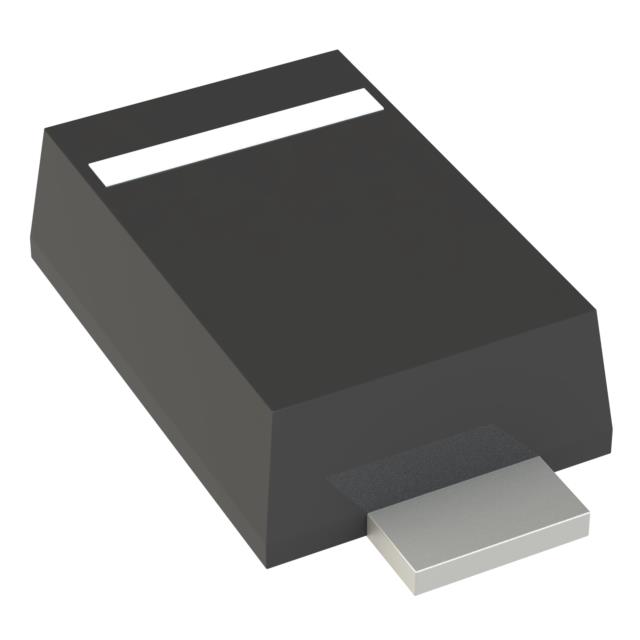

Micro Commercial Co. SMD320HE1-TP is a fast-recovery diode designed for surface mount applications. This SOD-123HE1 packaged component offers a 200V reverse voltage capability and a 3A average rectified current. Key electrical specifications include a maximum forward voltage of 850mV at 3A and a reverse leakage current of 10µA at 200V. The diode's fast recovery time, less than 500ns for currents greater than 200mA, makes it suitable for power supply circuits and switching applications. Operating across a junction temperature range of -55°C to 125°C, this component is utilized in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOD-123H |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | SOD-123HE1 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
