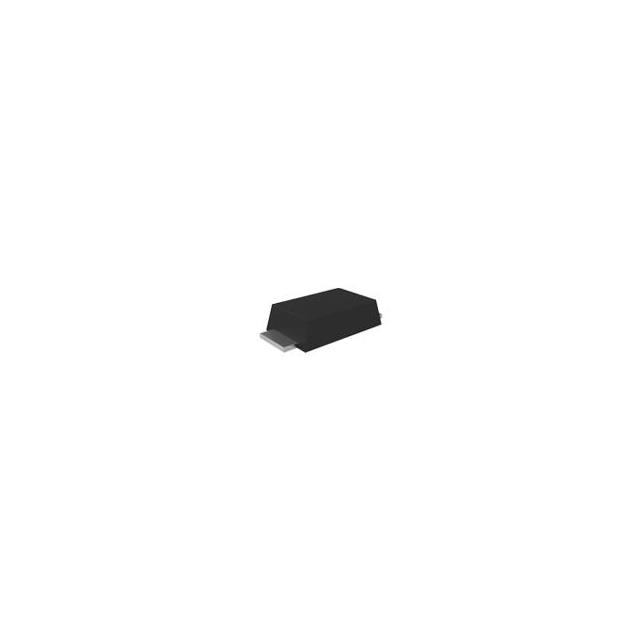

SMD14PE-TP
DIODE SCHOTTKY 40V 1A SOD323HEManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co's SMD14PE-TP is a Schottky diode designed for efficient rectification. This component features a 40V reverse voltage rating and a 1A average rectified current capability. The forward voltage drop is specified at a maximum of 520mV at 1A, contributing to low power loss. Reverse leakage current is a low 50 µA at 40V. The SMD14PE-TP utilizes a SOD-323HE package for surface mounting, suitable for compact designs. Operating temperature ranges from -55°C to 150°C. This diode is commonly employed in power supply circuits, switching applications, and general-purpose rectification across various electronics industries. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-90, SOD-323F |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SOD-323HE |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 40 V |
