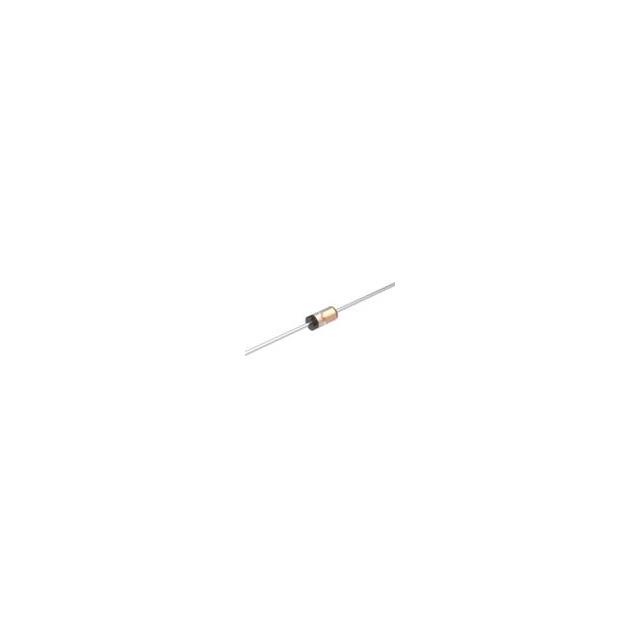

SD103C-TP
DIODE SCHOTTKY 20V 15A DO35Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co Schottky Diode SD103C-TP is a 20V, 15A axial lead device in a DO-35 (DO-204AH) package. This diode features a low forward voltage of 600 mV at 200 mA and a reverse leakage current of 5 µA at 10 V. With a fast recovery time of 10 ns, it is suitable for applications requiring efficient switching. The operating junction temperature is rated up to 125°C (Max). This component is commonly utilized in power supply rectification, reverse polarity protection, and switching circuits. The part is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | DO-35 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 10 V |
