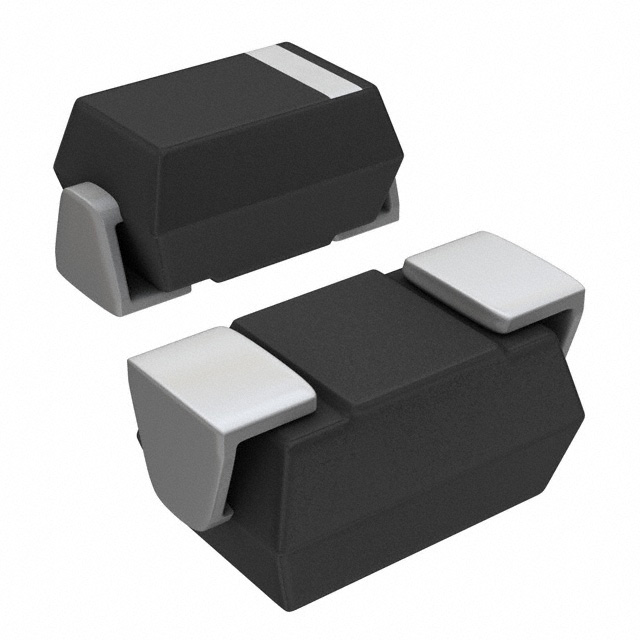

RM2000E-TP
DIODE GEN PURP 2KV 500MA DO214ACManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Diode 2000 V 500mA Surface Mount DO-214AC (SMAE)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | DO-214AC (SMAE) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 2000 V |
| Voltage - Forward (Vf) (Max) @ If | 3 V @ 500 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 2000 V |
Request a Quote
