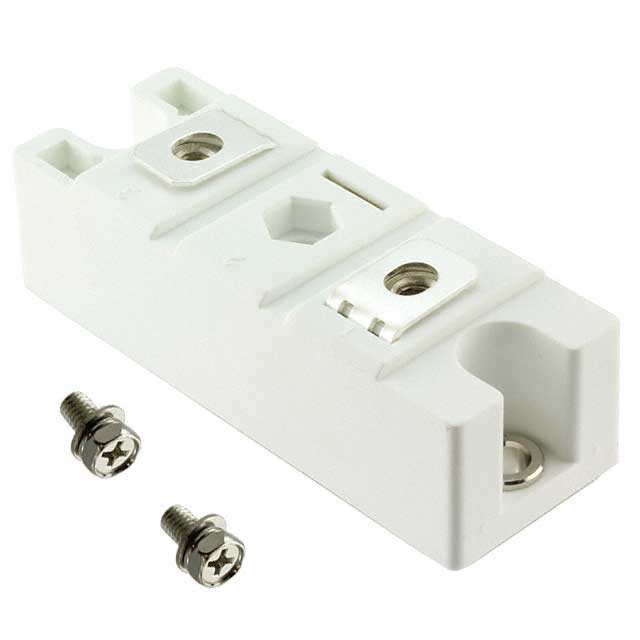

MF300U12F2-BP
DIODE GEN PURP 1.2KV 300A F2Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co MF300U12F2-BP is a general-purpose diode with a 1200 V reverse voltage rating and a 300 A average rectified forward current. This chassis mount module, with its F2 package, offers a fast recovery time of 150 ns, suitable for applications requiring efficient switching. The forward voltage drop is a maximum of 1.8 V at 300 A, and it exhibits a reverse leakage current of 5 mA at its maximum reverse voltage. Operating across a junction temperature range of -40°C to 150°C, this component is designed for robust performance. Its characteristics make it suitable for power conversion systems, industrial motor drives, and high-power rectification applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | F2 Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 300A |
| Supplier Device Package | F2 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 300 A |
| Current - Reverse Leakage @ Vr | 5 mA @ 1200 V |
