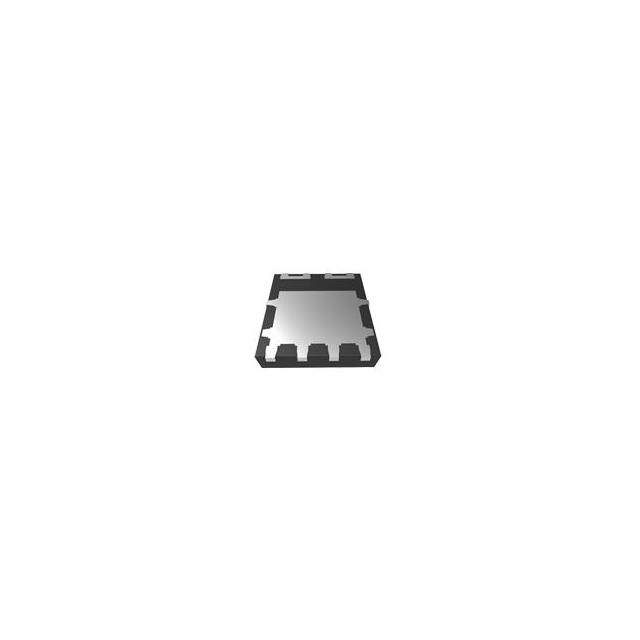

MBRLP2050-TP
DIODE SCHOTT 50V 20A DFN5060-8LManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co MBRLP2050-TP is a Schottky diode designed for high-efficiency rectification. This component features a 50V reverse voltage rating and a robust 20A average rectified forward current capability. The forward voltage drop is optimized at a maximum of 510 mV at 20A, minimizing power loss. With a low reverse leakage current of 300 µA at 50V, it ensures minimal standby power consumption. The device operates across a wide junction temperature range of -55°C to 150°C, making it suitable for demanding environments. The DFN5060-8L package provides a compact footprint for surface mount applications. This diode is commonly utilized in power supply circuits, voltage clamping, and reverse polarity protection across various industrial and automotive applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | DFN5060-8L |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 510 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 50 V |
