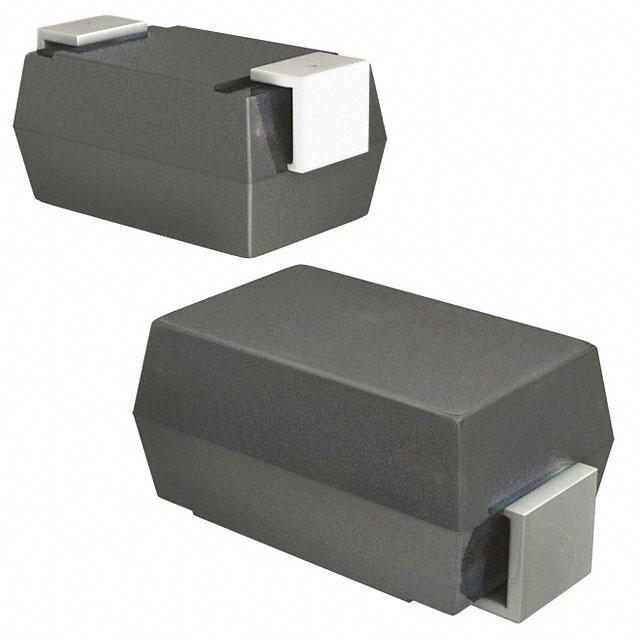

GS1ME-TPS05
DIODE GEN PURP 1KV 1A SMAEManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
The Micro Commercial Co GS1ME-TPS05 is a general-purpose diode with a 1000V reverse voltage rating and a 1A average rectified current. This surface mount device, packaged in a DO-214AC (SMA) case, features a maximum forward voltage of 1.1V at 1A and a low reverse leakage of 10µA at 1000V. Its capacitance is specified at 15pF @ 4V, 1MHz. Operating across a junction temperature range of -55°C to 150°C, this component offers standard recovery speeds exceeding 500ns for currents above 200mA. It is commonly utilized in power supply rectification, voltage clamping, and general switching applications within industrial and consumer electronics. The GS1ME-TPS05 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SMAE |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
