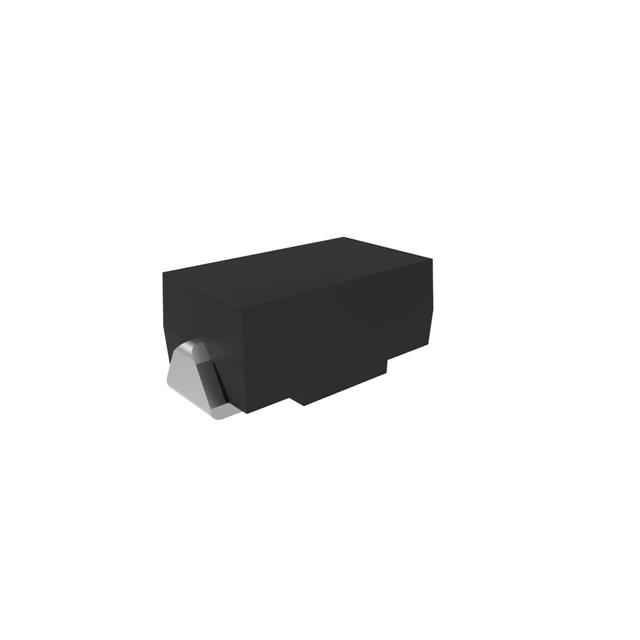

FS1JE-TP
DIODE GEN PURP 600V 1A SMAEManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co. FS1JE-TP is a general-purpose diode with a 600V reverse voltage rating and a 1A average rectified forward current. This component utilizes standard recovery technology, featuring a reverse recovery time (trr) of 250 ns. The forward voltage drop (Vf) is a maximum of 1.3V at 1A, and the reverse leakage current is 5 µA at 600V. With a junction capacitance of 15pF at 4V and 1MHz, it is designed for surface mount applications within the DO-214AC (SMA) package. The operating junction temperature range is from -50°C to 150°C. This diode is supplied in tape and reel packaging. It is suitable for use in various applications including power supplies, rectification circuits, and general-purpose switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-214AC (SMAE) |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
