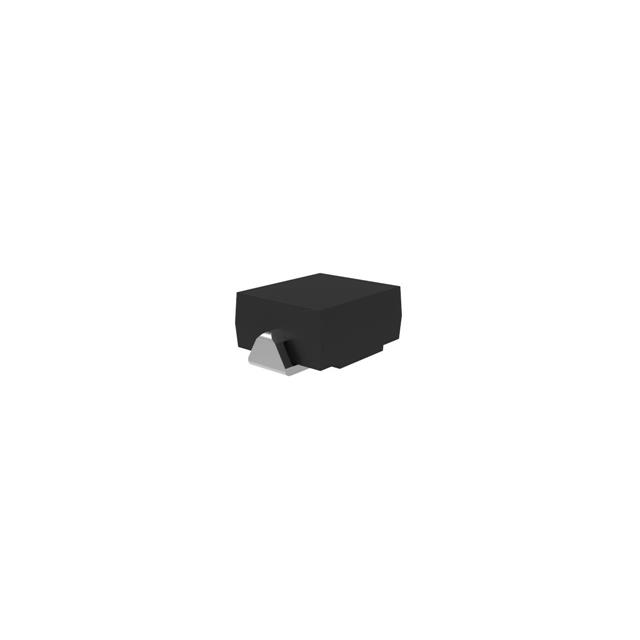

FR6J-TP
DIODE GEN PURP 600V 6A DO214ABManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co FR6J-TP is a general-purpose diode designed for high-voltage applications. This component features a 600V reverse voltage rating and a 6A average rectified forward current capacity. The DO-214AB (SMC) surface mount package offers efficient thermal performance. With a forward voltage drop of 1.3V at 6A and a reverse leakage current of 10 µA at 600V, it is suitable for power supply rectification, inverters, and motor control circuits. The diode exhibits a fast recovery time of 250 ns, making it ideal for switching power applications. Operating temperature range is -55°C to 150°C. The FR6J-TP is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 6A |
| Supplier Device Package | DO-214AB (HSMC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 6 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
