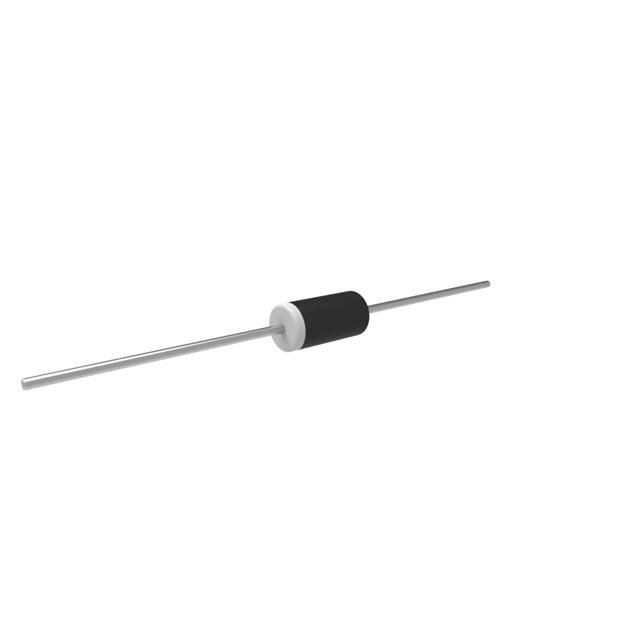

FR507GP-TP
DIODE GEN PURP 1KV 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co FR507GP-TP is a general-purpose diode with a maximum repetitive peak reverse voltage of 1000V and an average rectified forward current of 5A. This axial leaded component, housed in a DO-201AD package, features a maximum forward voltage drop of 1.35V at 5A. The diode exhibits a reverse leakage current of 10 µA at 1000V and a junction capacitance of 65pF at 4V and 1MHz. With a reverse recovery time of 500 ns, it is classified as a fast recovery diode. Operating across a junction temperature range of -55°C to 150°C, the FR507GP-TP is suitable for applications in power supplies and general rectification within industrial and consumer electronics. This component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
