FR506-TP

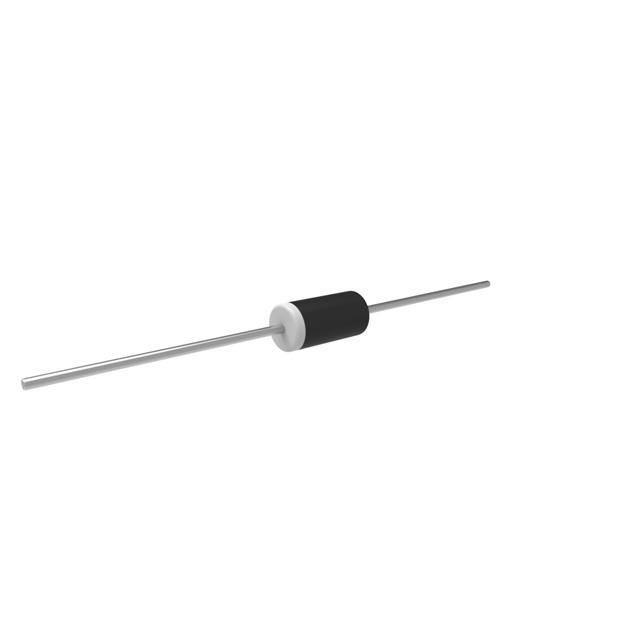

DIODE GEN PURP 800V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
The Micro Commercial Co FR506-TP is a general-purpose diode with a maximum repetitive peak reverse voltage of 800 V and an average rectified forward current of 5 A. This through-hole component, housed in a DO-201AD axial package, features a fast recovery time of 500 ns. Its forward voltage drop is 1.35 V at 5 A, and it exhibits a low reverse leakage current of 10 µA at 800 V. The junction operating temperature range is -55°C to 150°C. This diode is commonly utilized in power supply rectification and general-purpose switching applications across various industrial sectors. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
