FR505-TP

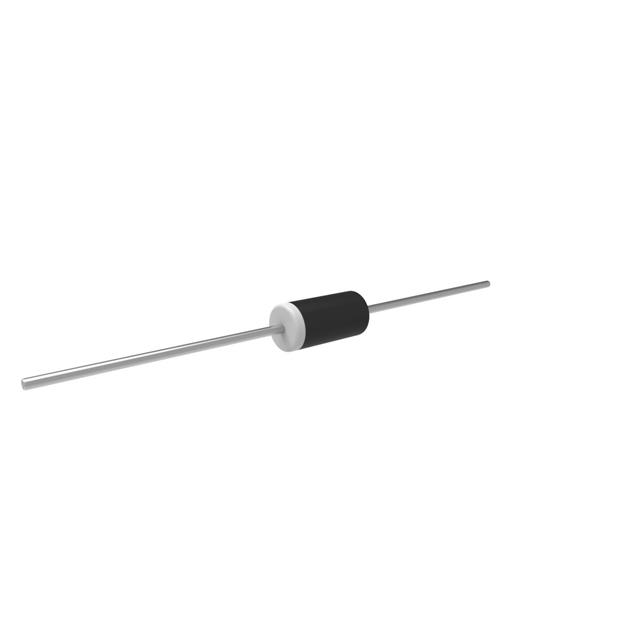

DIODE GEN PURP 600V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co FR505-TP is a general-purpose diode designed for applications requiring robust rectification. This component features a maximum DC reverse voltage (Vr) of 600V and an average rectified forward current (Io) of 5A. The forward voltage drop (Vf) at 5A is specified at 1.35V. With a reverse leakage current of 10 µA at 600V, it demonstrates efficient blocking capabilities. The diode's typical capacitance is 65pF at 4V and 1MHz. This through-hole mounted device, packaged in a DO-201AD (Axial) case, operates across a junction temperature range of -55°C to 150°C. The FR505-TP is supplied in Tape & Reel (TR) packaging and is categorized as a Standard technology diode with a reverse recovery time (trr) of 250 ns, classifying it as a fast recovery diode. This component is commonly utilized in power supplies, industrial control systems, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
