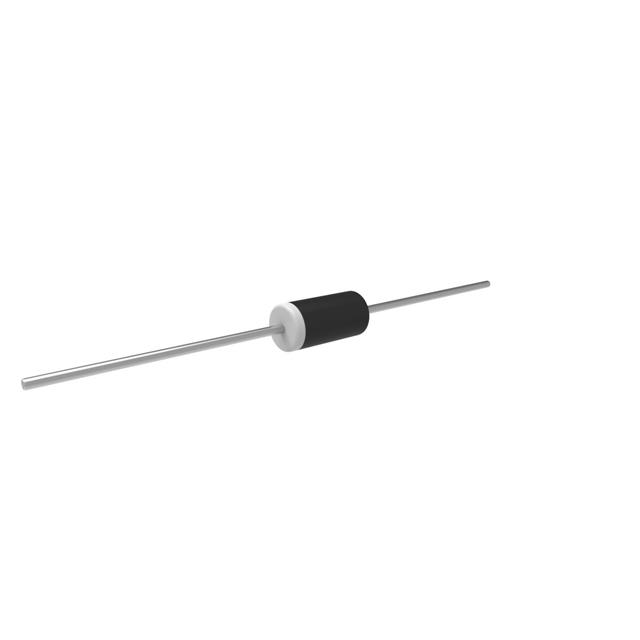

FR504-TP
DIODE GEN PURP 400V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
The Micro Commercial Co FR504-TP is a general-purpose diode featuring a 400V reverse voltage rating and a 5A average rectified current capability. Constructed with standard technology, this axial-leaded component is housed in a DO-201AD package, suitable for through-hole mounting. It offers a forward voltage drop of 1.35V at 5A and a reverse leakage current of 10 µA at its maximum reverse voltage of 400V. The diode exhibits a reverse recovery time of 150 ns, classifying it as a fast recovery diode. Its junction operating temperature range is -55°C to 150°C. Typical applications include power supply rectification and general-purpose switching in industrial and consumer electronics. This component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
