FR503GP-TP
DIODE GEN PURP 200V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More

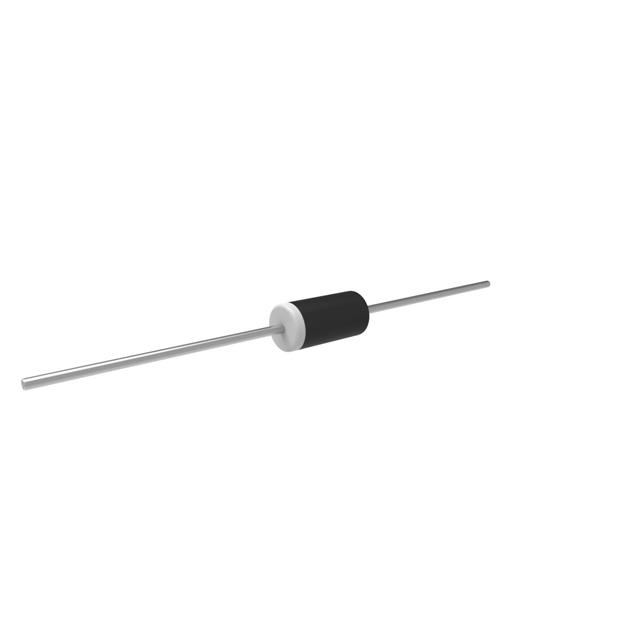

Micro Commercial Co. FR503GP-TP is a general-purpose diode featuring a 200 V reverse voltage and a 5 A average rectified forward current. This through-hole component, housed in a DO-201AD axial package, offers a maximum forward voltage of 1.35 V at 5 A. The diode exhibits a low reverse leakage current of 10 µA at 200 V and a capacitance of 65 pF at 4 V and 1 MHz. With a reverse recovery time of 150 ns, it is classified as a fast recovery diode. The operating junction temperature range is -55°C to 150°C. This component is commonly utilized in power supply circuits and general rectification applications across various industrial sectors. The FR503GP-TP is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
