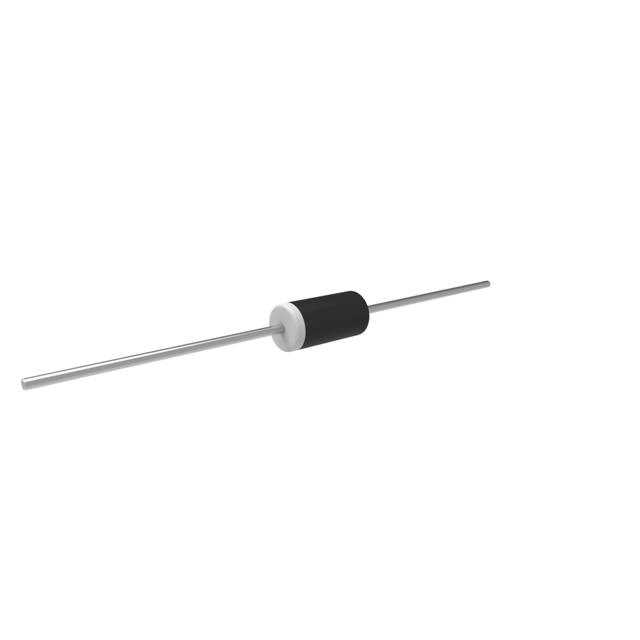

FR503-TP
DIODE GEN PURP 200V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co FR503-TP, a general-purpose diode, offers a 200V reverse voltage and a 5A average rectified current. This through-hole component, packaged in a DO-201AD axial case, features a fast recovery time of 150 ns. Its forward voltage drop is 1.35V at 5A, with a reverse leakage of 10 µA at 200V. The junction operating temperature range is -55°C to 150°C. The FR503-TP is supplied on tape and reel (TR) and is utilized in power supply rectification and general switching applications across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
