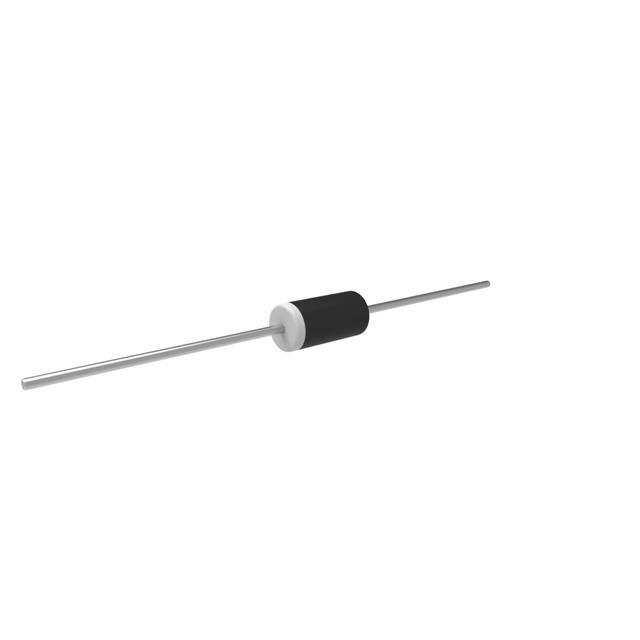

FR502GP-TP
DIODE GEN PURP 100V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
The Micro Commercial Co FR502GP-TP is a general-purpose diode featuring a 100V reverse voltage rating and a 5A average rectified current capability. This through-hole component, housed in a DO-201AD axial package, operates within a junction temperature range of -55°C to 150°C. Its fast recovery characteristic, with a typical reverse recovery time (trr) of 150 ns, makes it suitable for applications requiring efficient switching. The diode exhibits a forward voltage drop of 1.35V at 5A and a low reverse leakage current of 10 µA at its maximum reverse voltage. Capacitance is rated at 65pF at 4V and 1MHz. This component finds application in power supplies, rectification circuits, and various industrial control systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
