FR501GP-TP
DIODE GEN PURP 50V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More

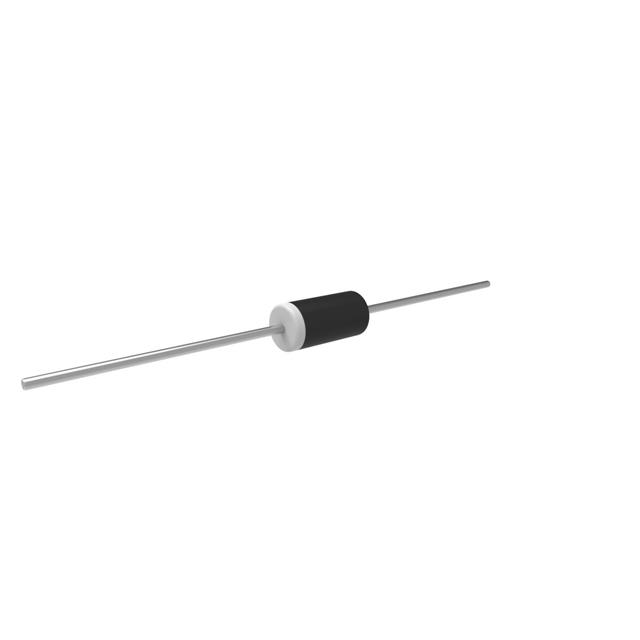

The Micro Commercial Co FR501GP-TP is a general-purpose diode designed for rectifying applications. This through-hole component, housed in a DO-201AD axial package, offers a maximum DC reverse voltage of 50V and an average rectified forward current of 5A. It features a forward voltage (Vf) of 1.35V at 5A and a reverse leakage current of 10µA at 50V. The diode's capacitance is rated at 65pF at 4V and 1MHz. With a specified reverse recovery time (trr) of 150ns, it is classified as a fast recovery diode (typically <500ns for >200mA). The operating junction temperature range is -55°C to 150°C. This component is commonly utilized in power supply circuits, industrial automation, and automotive electronics. The FR501GP-TP is provided in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
