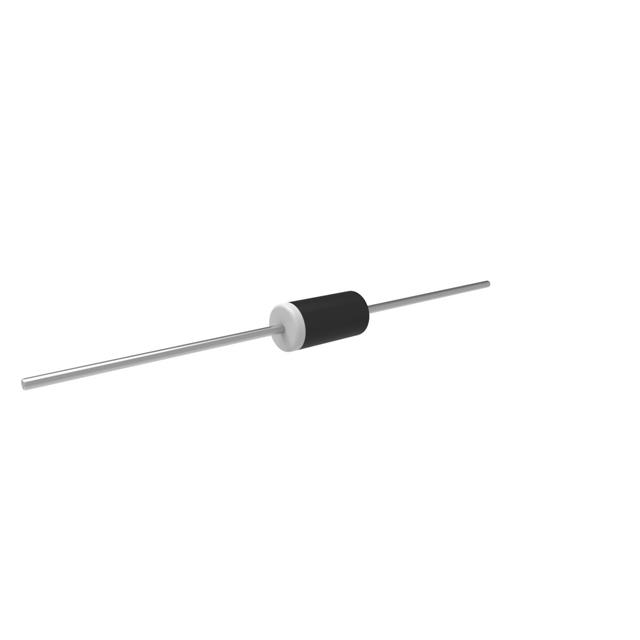

FR501-TP
DIODE GEN PURP 50V 5A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co. FR501-TP is a general-purpose diode designed for robust rectification applications. This through-hole component, housed in a DO-201AD axial package, features a maximum DC reverse voltage of 50V and an average rectified current capability of 5A. With a forward voltage drop of 1.35V at 5A, it exhibits a low leakage current of 10 µA at 50V. The diode's speed is classified as fast recovery, with a specified reverse recovery time (trr) of 150 ns. Its operating temperature range spans from -55°C to 150°C, making it suitable for demanding industrial environments. Typical applications include power supplies, switching circuits, and general rectification in consumer electronics and industrial control systems. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
