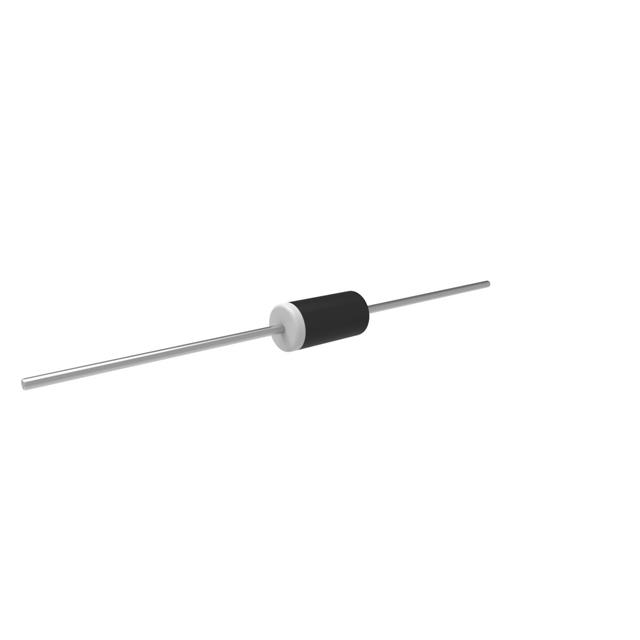

FR307-TP
DIODE GEN PURP 1KV 3A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
The Micro Commercial Co FR307-TP is a general-purpose diode with a maximum repetitive reverse voltage of 1000 V and a forward current of 3 A. This axial leaded device features a fast recovery time of 500 ns, making it suitable for applications requiring efficient rectification. The diode has a forward voltage drop of 1.3 V at 3 A and a reverse leakage current of 10 µA at 1000 V. Its junction operating temperature range is -55°C to 150°C. The FR307-TP is packaged in a DO-201AD case and supplied in tape and reel. This component finds application in power supply, switching, and general rectification circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
