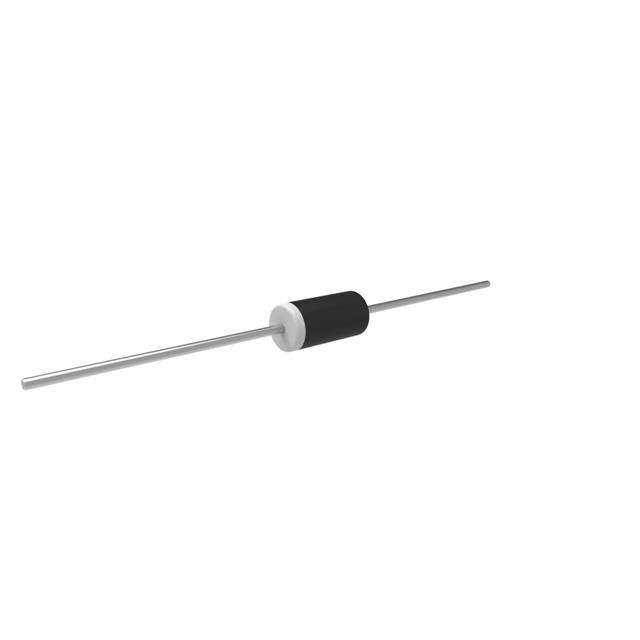

FR305-TP
DIODE GEN PURP 600V 3A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
The Micro Commercial Co FR305-TP is a general-purpose diode designed for applications requiring robust performance. This through-hole component, housed in a DO-201AD axial package, offers a maximum DC reverse voltage of 600V and an average rectified current capability of 3A. Key parameters include a forward voltage (Vf) of 1.3V at 3A, a reverse leakage current of 10 µA at 600V, and a capacitance of 65pF at 4V and 1MHz. With a reverse recovery time (trr) of 250 ns, this diode is classified as fast recovery. It operates across a junction temperature range of -55°C to 150°C and is supplied in Tape & Reel (TR) packaging. This device finds utility in power supply rectification and general switching applications across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 65pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
