FR302GP-TP
DIODE GEN PURP 100V 3A DO201ADManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More

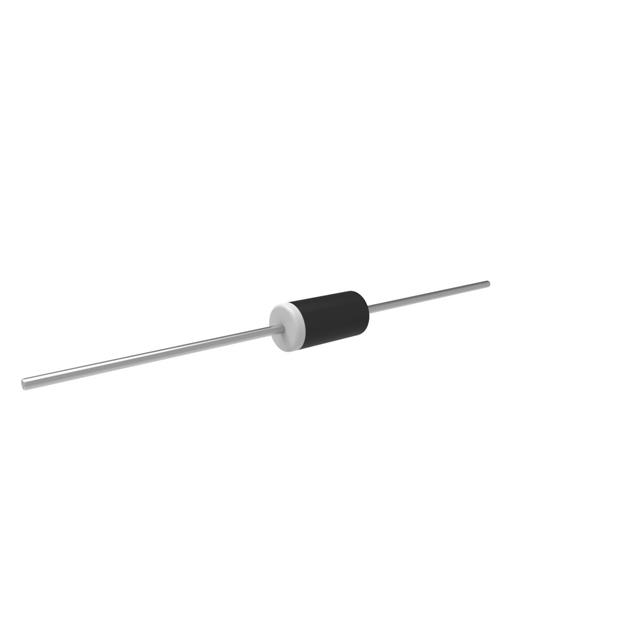

Diode 100 V 3A Through Hole DO-201AD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 50pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
