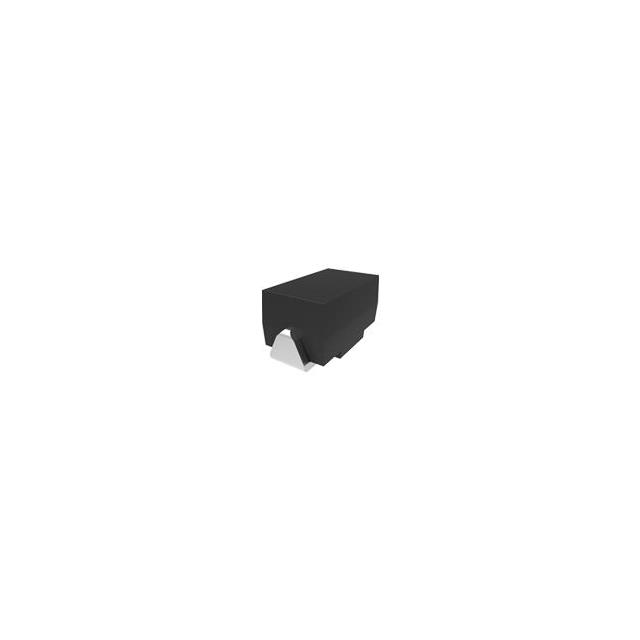

ES1BE-TP
DIODE GEN PURP 100V 1A DO214ACManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co. ES1BE-TP is a general-purpose diode designed for surface mount applications. This component features a maximum repetitive reverse voltage (Vr) of 100V and an average rectified forward current (Io) of 1A. The forward voltage drop (Vf) is rated at 975mV at 1A, and the reverse leakage current is 5µA at 100V. With a capacitance of 45pF at 4V and 1MHz, and a reverse recovery time (trr) of 50ns, this diode is categorized as fast recovery. It is supplied in a DO-214AC (SMAE) package and is available in Tape & Reel (TR) packaging. The ES1BE-TP operates within a junction temperature range of -50°C to 150°C and is commonly utilized in power supply circuits, switching applications, and general rectification across various industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 45pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-214AC (SMAE) |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 975 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
