DZW12000-04-BP
InterfaceManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More

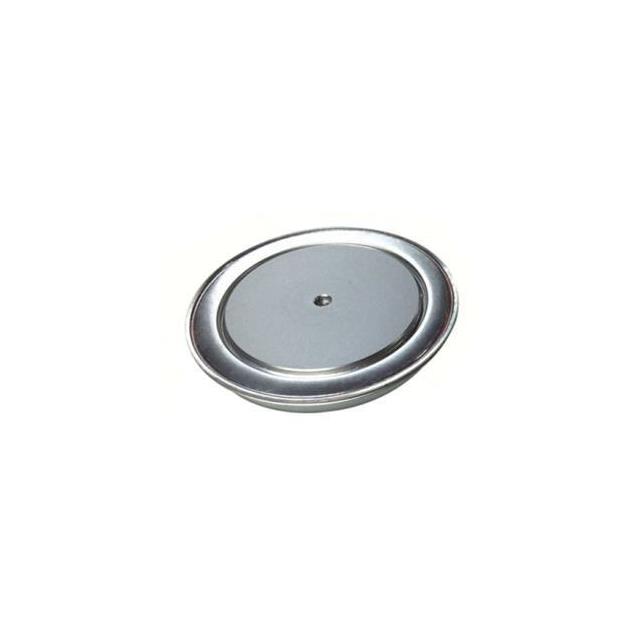

Micro Commercial Co DZW12000-04-BP is a high-current clamp-on diode designed for demanding interface applications. This component boasts a maximum DC reverse voltage rating of 400 V and an impressive average rectified forward current handling capability of 12000 A. The forward voltage drop at a significant 5000 A is 990 mV, with a reverse leakage of 15 mA at its peak reverse voltage. Engineered for standard recovery speeds exceeding 500 ns for currents greater than 200 mA, it operates within a junction temperature range of -40°C to 170°C. The DO-200AC, K-PUK package facilitates a robust clamp-on mounting type. This diode is commonly integrated into power conditioning and protection circuits across various industrial sectors, including power generation and heavy machinery.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-200AC, K-PUK |
| Mounting Type | Clamp On |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 12000A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 170°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 990 mV @ 5000 A |
| Current - Reverse Leakage @ Vr | 15 mA @ 400 V |
