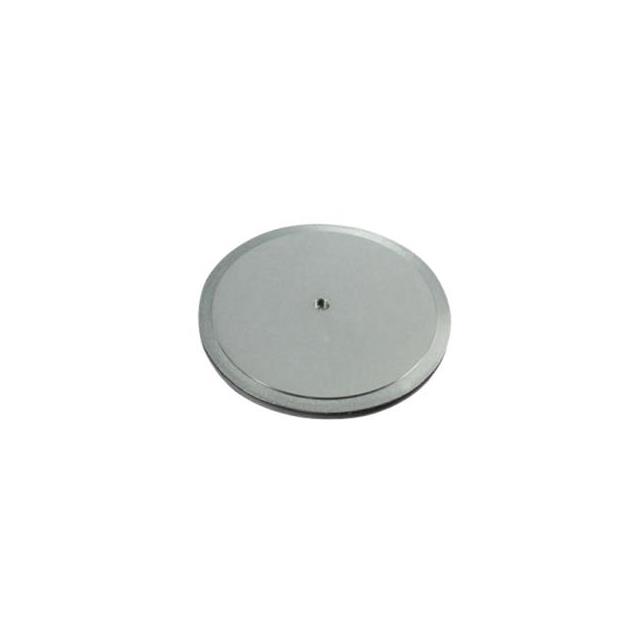

DZW10500-02-BP
InterfaceManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co DZW10500-02-BP is a high-current diode designed for robust interface applications. This component offers a peak reverse voltage (Vr) of 200 V and a substantial 10500 A average rectified current (Io). Featuring a clamp-on mounting type, its DO-200AB, B-PUK package ensures efficient heat dissipation with an operating junction temperature range of -40°C to 180°C. The diode exhibits a forward voltage (Vf) of 1.01 V at 5000 A, with a reverse leakage current of 5 mA at 200 V. Its standard recovery speed, exceeding 500 ns for currents greater than 200 mA, makes it suitable for power supply regulation and surge protection in industrial and automotive sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-200AB, B-PUK |
| Mounting Type | Clamp On |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 10500A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.01 V @ 5000 A |
| Current - Reverse Leakage @ Vr | 5 mA @ 200 V |
