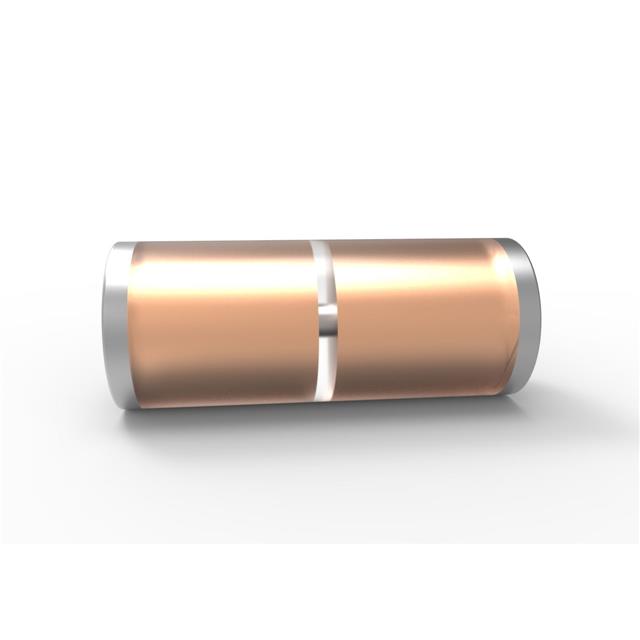

DL4150-TP
DIODE GP 50V 200MA MINI MELFManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co DL4150-TP is a general-purpose diode with a maximum reverse voltage of 50 V and an average rectified forward current of 200 mA. This small signal diode features a low forward voltage of 1 V at 200 mA and a reverse leakage of 100 nA at its maximum reverse voltage. The component boasts a fast reverse recovery time of 6 ns. Its capacitance at 0 V and 1 MHz is 2.5 pF. Manufactured with standard technology, the DL4150-TP is housed in a DO-213AC, MINI-MELF, SOD-80 package suitable for surface mounting and supplied in Tape & Reel (TR) packaging. This diode is commonly utilized in switching power supplies and signal processing applications within the consumer electronics and telecommunications industries. The maximum operating junction temperature is 175°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 2.5pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | Mini MELF |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
