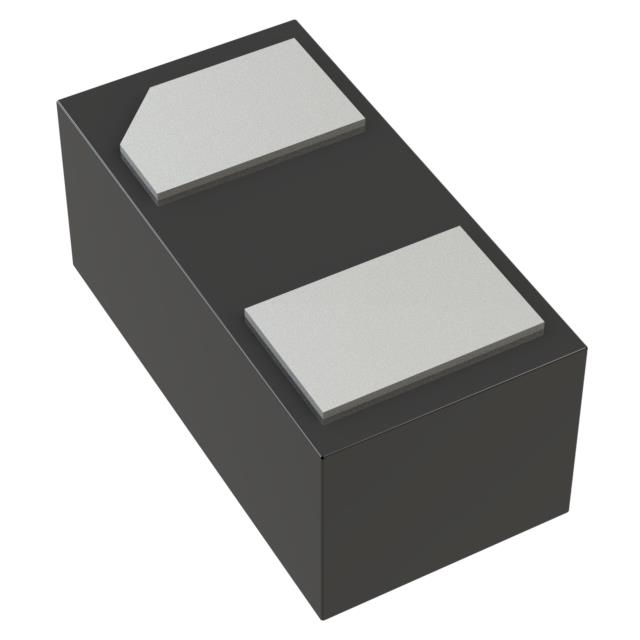

CSP522S-30DP-TP
SMALL SIGNAL SCHOTTKY DIODEManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Diode 30 V 100mA Surface Mount 0201-A
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 15pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | 0201-A |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 650 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 30 V |
| Qualification | - |
