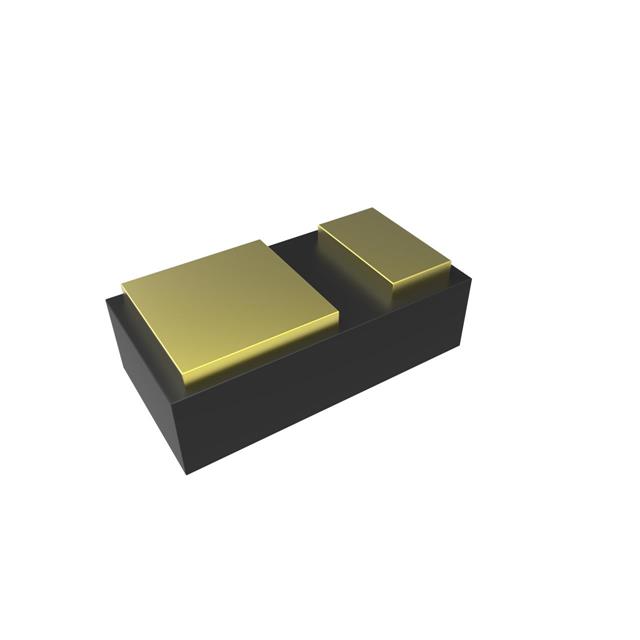

B5819XP-TP

DIODE SCHOTTKY 40V 1A FBP-02L

Manufacturer: Micro Commercial Co

Categories: Single Diodes

Quality Control: Learn More

Micro Commercial Co B5819XP-TP is a Schottky diode with a 40V reverse voltage and 1A average rectified current. This component features a low forward voltage of 550mV at 700mA and a reverse leakage current of 50µA at 40V. The B5819XP-TP has a fast reverse recovery time of 15ns. With a junction operating temperature up to 125°C, it is housed in a compact 0603 (1608 Metric) surface mount package, specifically the FBP-02L supplier device package. Its capacitance is rated at 50pF @ 1V, 1MHz. This device is supplied in Tape & Reel (TR) packaging and finds application in power supplies, voltage clamping, and high-frequency rectification circuits across various industrial and consumer electronics sectors.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / Case0603 (1608 Metric)
Mounting TypeSurface Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)15 ns
TechnologySchottky
Capacitance @ Vr, F50pF @ 1V, 1MHz
Current - Average Rectified (Io)1A
Supplier Device PackageFBP-02L
Operating Temperature - Junction125°C (Max)
Voltage - DC Reverse (Vr) (Max)40 V
Voltage - Forward (Vf) (Max) @ If550 mV @ 700 mA
Current - Reverse Leakage @ Vr50 µA @ 40 V
