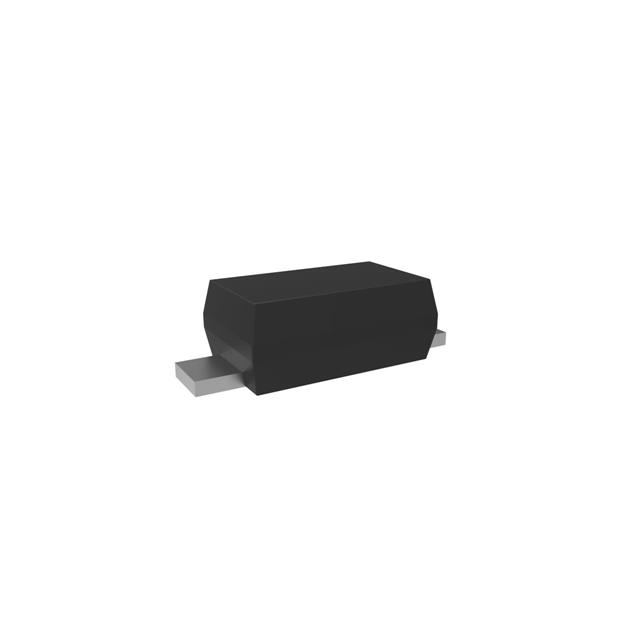

1N4148WXL-TP
DIODE GP 100V 150MA SOD323FLManufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Diode 100 V 150mA Surface Mount SOD-323FL
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SC-90, SOD-323F |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 150mA |
| Supplier Device Package | SOD-323FL |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
Request a Quote
