1F7G-TP
DIODE GEN PURP 1KV 1A R-1Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More

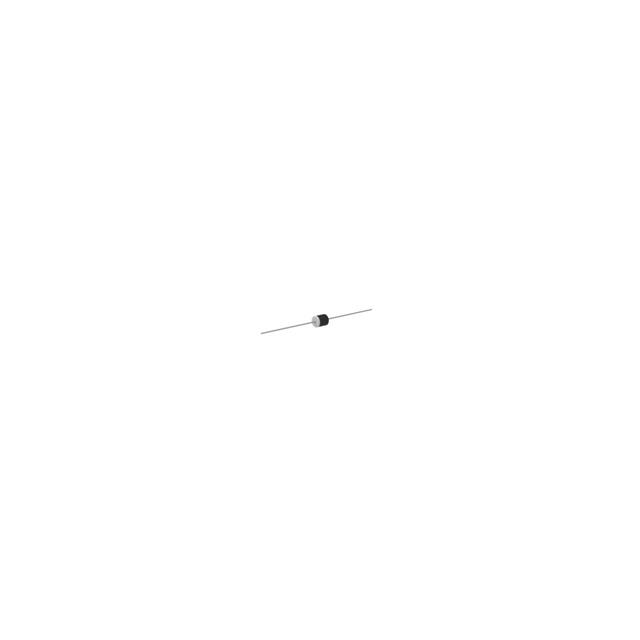

Micro Commercial Co 1F7G-TP is a General Purpose Diode with a maximum repetitive reverse voltage of 1000 V. This through-hole component, housed in an R-1 axial package, offers an average rectified current handling capability of 1A. The diode exhibits a forward voltage of 1.3 V at 1A and a reverse leakage current of 5 µA at its maximum reverse voltage. With a reverse recovery time of 500 ns, it is classified as a fast recovery diode. Key applications for this component include power supplies, rectification circuits, and general-purpose switching. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | R-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
