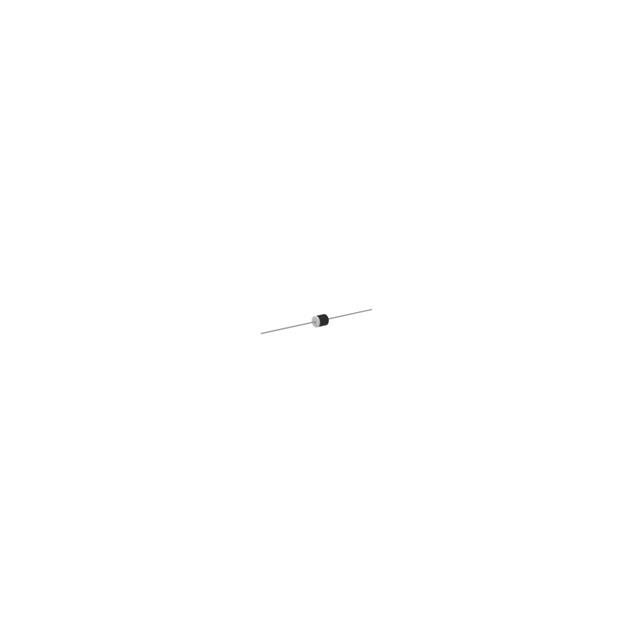

1F6G-TP
DIODE GEN PURP 800V 1A R-1Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co 1F6G-TP is an 800V, 1A general-purpose diode. This through-hole component, housed in an R-1 axial package, features a maximum forward voltage of 1.3V at 1A and a reverse leakage current of 5 µA at 800V. Its fast recovery time is rated at 500 ns, characterized by speeds greater than 200mA (Io). The diode exhibits a capacitance of 12pF at 4V and 1MHz. Operating junction temperatures range from -55°C to 150°C. This component is commonly utilized in power supplies, lighting, and industrial control applications. The part is supplied on Tape & Reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | R-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
