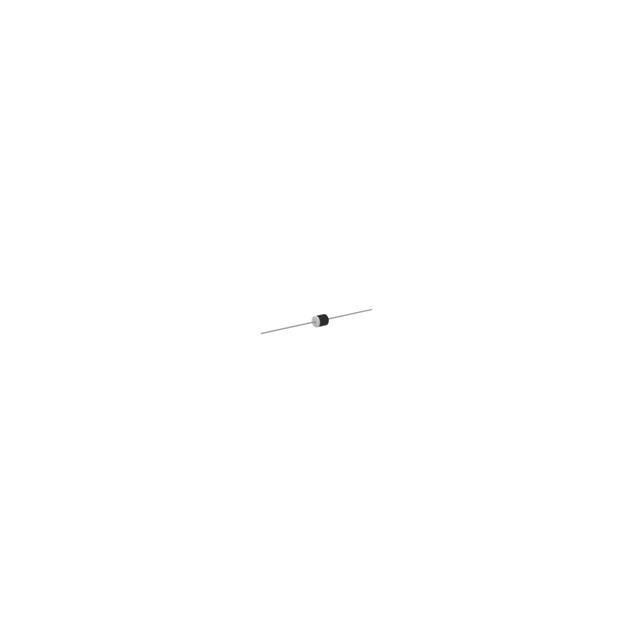

1F5G-TP
DIODE GEN PURP 600V 1A R-1Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co 1F5G-TP is a general-purpose diode designed for high voltage applications. This through-hole component features a maximum DC reverse voltage of 600 V and an average rectified current of 1 A. The forward voltage (Vf) is a maximum of 1.3 V at 1 A, and it exhibits a reverse leakage current of 5 µA at 600 V. With a capacitance of 12 pF at 4 V and 1 MHz, this diode offers a reverse recovery time (trr) of 250 ns, classifying it as a fast recovery diode. The R-1 axial package is supplied on tape and reel. This component is suitable for use in power supply rectification, switching power supplies, and general-purpose rectification across various industrial and consumer electronics sectors. The operating junction temperature ranges from -55°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | R-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
