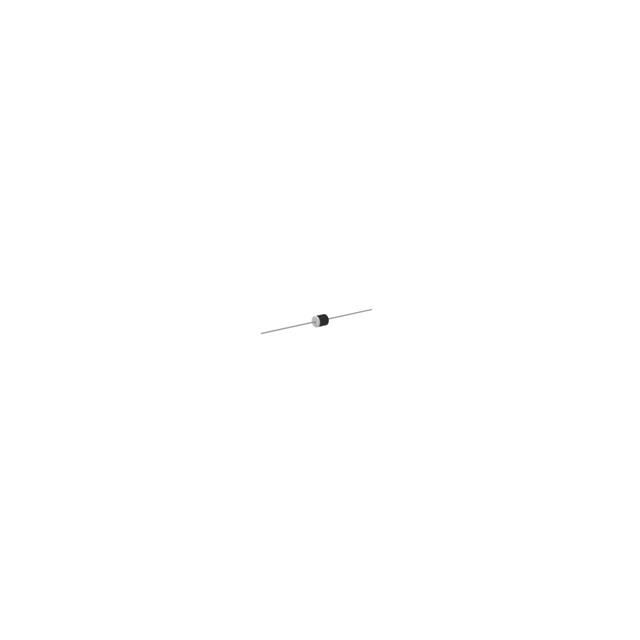

1F4G-TP
DIODE GEN PURP 400V 1A R-1Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co 1F4G-TP is a general-purpose diode with a 400V reverse voltage rating and a 1A average rectified current. This axial-leaded diode, housed in an R-1 package, offers a fast recovery time of 150 ns, suitable for applications requiring switching speeds greater than 200mA. With a forward voltage of 1.3V at 1A and a low reverse leakage of 5 µA at 400V, it provides efficient rectification. The component operates across a junction temperature range of -55°C to 150°C. This diode finds application in power supplies, general rectification, and switching circuits across various industrial and consumer electronics sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | R-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
