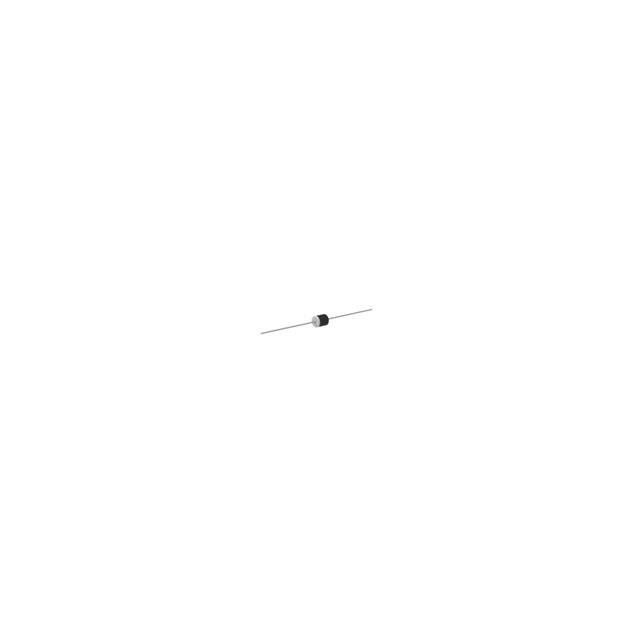

1F3G-TP
DIODE GEN PURP 200V 1A R-1Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co 1F3G-TP is a general-purpose diode designed for demanding applications requiring efficient rectification. This through-hole component, housed in an R-1 axial package, offers a reverse voltage rating of 200V and an average rectified current capability of 1A. Featuring a fast recovery time of 150 ns, it is suitable for applications demanding switching speeds up to 500ns. The forward voltage drop is a maximum of 1.3V at 1A, with a low reverse leakage current of 5 µA at 200V. Its operating junction temperature range spans from -55°C to 150°C. The 1F3G-TP is commonly utilized in power supply rectification, switching circuits, and general electronic design across various industries including industrial automation and consumer electronics. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | R-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
