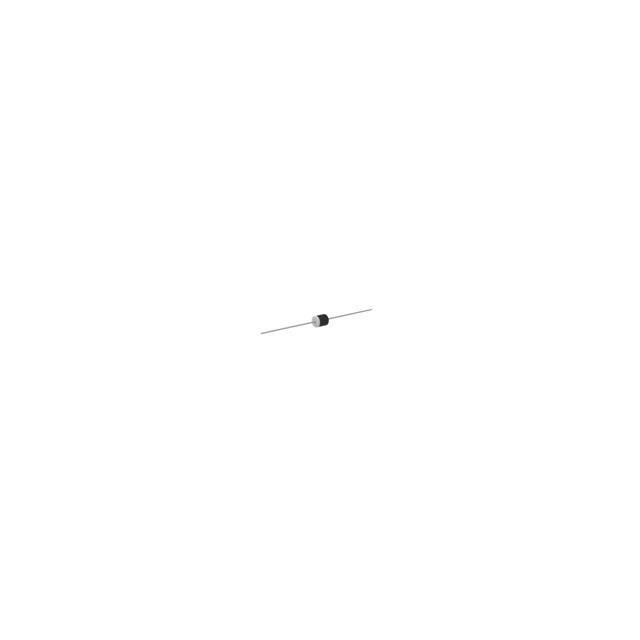

1F1G-TP
DIODE GEN PURP 50V 1A R-1Manufacturer: Micro Commercial Co
Categories: Single Diodes
Quality Control: Learn More
Micro Commercial Co 1F1G-TP is a General Purpose Diode with a 50V reverse voltage rating and 1A average rectified current. This through-hole component features a fast recovery time of 150ns, exceeding the >200mA (Io) threshold for fast recovery diodes. The forward voltage drop is 1.3V at 1A. Leakage current is rated at 5 µA at 50V. The device exhibits a capacitance of 12pF at 4V and 1MHz. Operating temperature range is -55°C to 150°C. The component is supplied in an R-1 axial package, presented in Tape & Reel (TR) packaging. This diode is suitable for applications in power supplies and general rectification circuits across various industrial segments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | R-1 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V |
