S9013-G-BP
TRANS NPN 25V 0.5A TO92Manufacturer: Micro Commercial Co
Categories: Single Bipolar Transistors
Quality Control: Learn More

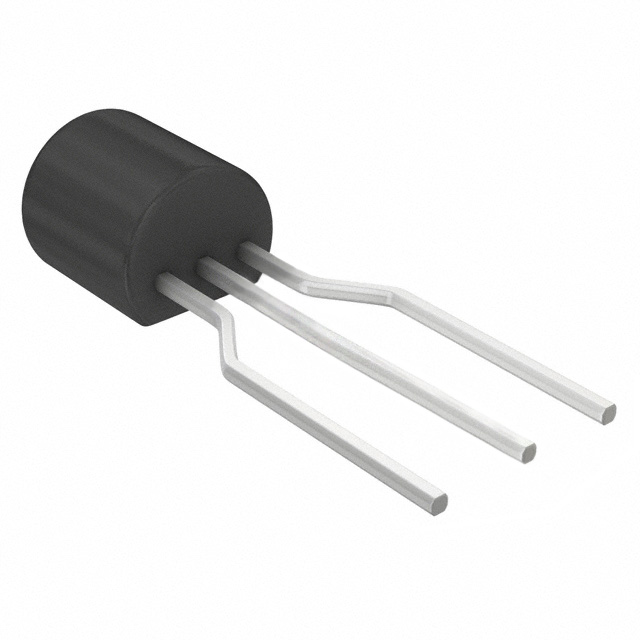

Micro Commercial Co S9013-G-BP is an NPN bipolar transistor designed for general-purpose amplification and switching applications. This component features a 25V collector-emitter breakdown voltage and a maximum collector current of 500 mA. With a transition frequency of 150 MHz and a minimum DC current gain (hFE) of 112 at 50mA and 1V, it offers efficient performance. The transistor dissipates a maximum power of 625 mW and operates within an ambient temperature range of -55°C to 150°C. It is presented in a standard TO-92 package (TO-226-3, TO-92-3) for through-hole mounting, suitable for use in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 112 @ 50mA, 1V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | TO-92 |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
| Power - Max | 625 mW |
