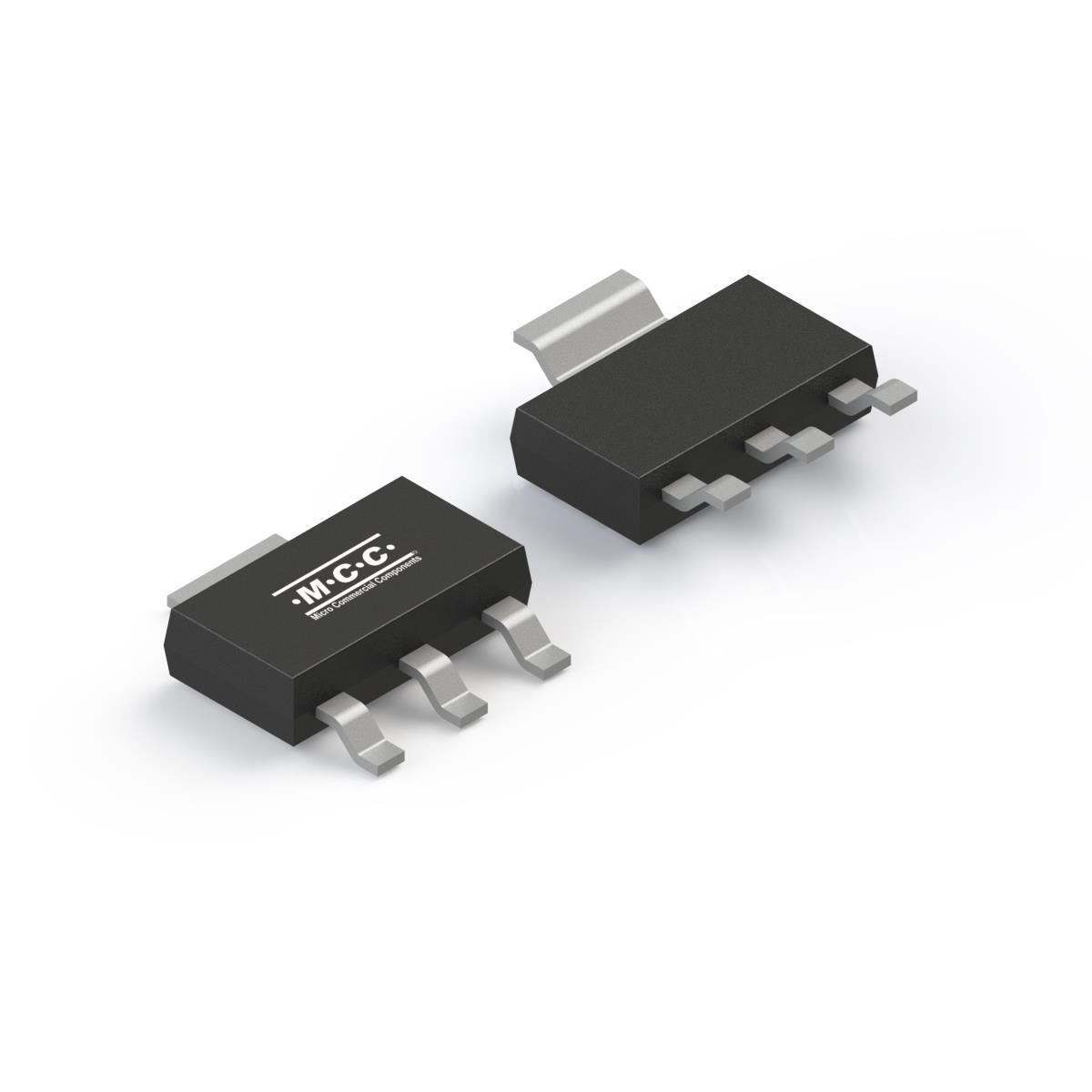

PZT5551HE3-TP
BIPOLAR TRANSISTORSManufacturer: Micro Commercial Co
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 160 V 600 mA 100MHz 1 W Surface Mount SOT-223
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | SOT-223 |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| Power - Max | 1 W |
| Qualification | AEC-Q101 |
