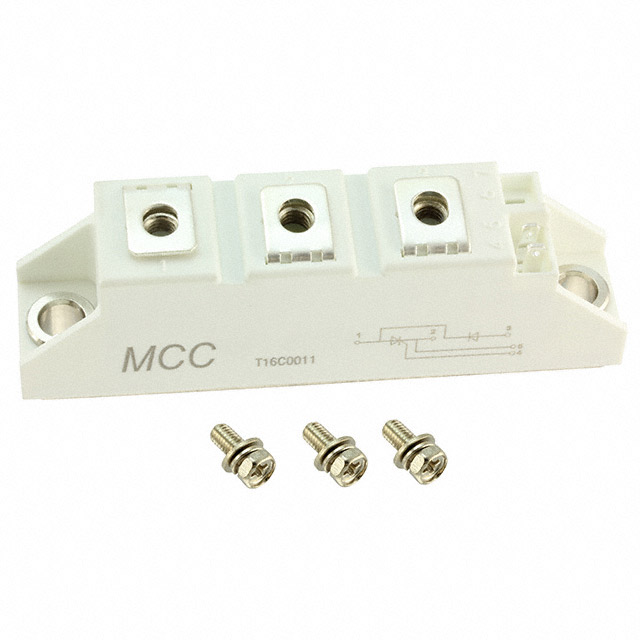

MT160C16T2-BP
MOD SCR DUAL 160A 1600V T2Manufacturer: Micro Commercial Co
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV Series Connection - All SCRs Chassis Mount T2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | T2 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5400A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 160 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.6 kV |
